GPS trackers

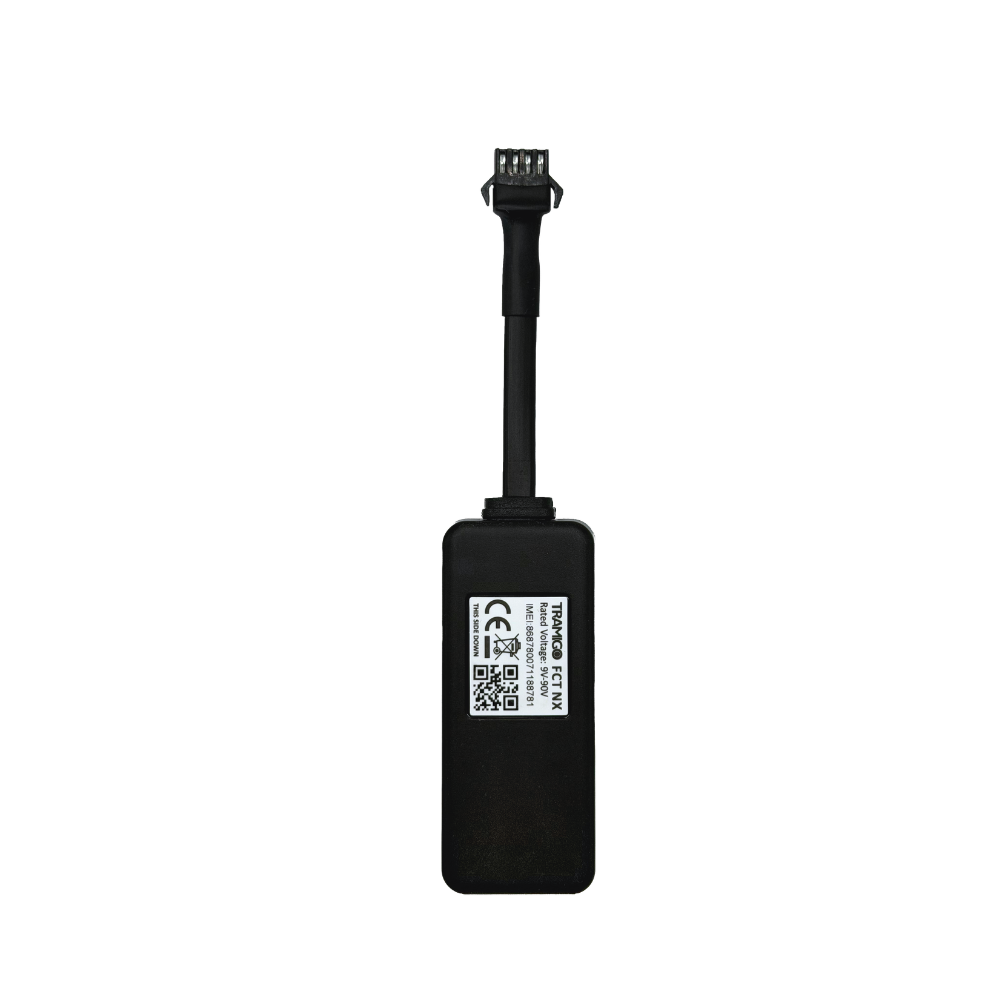

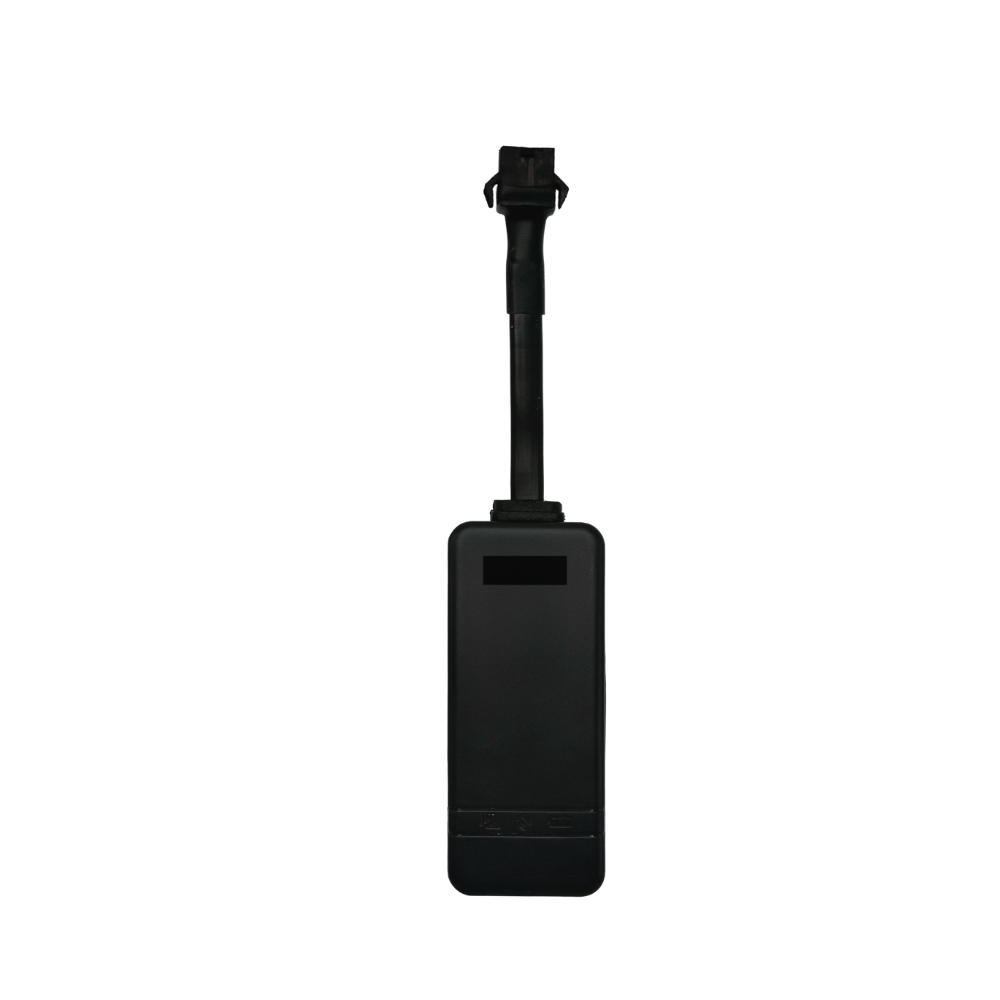

FCT NX

FCT NX is a compact vehicle tracking solution with reliable 4G-2G connectivity, real-time alerts, and remote vehicle control capabilities.

Key Features

Precise live tracking
Geo-fence alarm alerts
Remote immobilization support
Driving behavior insights
Shock / motion alarms
4G with 2G fallback
Multi-network connectivity
Supports 9–90V vehicles

Item Details

Hardware Specifications

Physical Specification

  • Dimensions: 74 (L) × 31 (W) × 13 (H) mm

Sensitivity

  • Tracking Sensitivity: −162 dBm
  • Acquisition Sensitivity: −148 dBm

Power

  • Input Voltage: 9–90 V DC
  • Battery: 55 mAh / 3.7 V Li-Polymer battery

Temperature

Operating Environment

  • Operating Temperature: −20 °C to +70 °C

Interfaces

Interface

  • Indication: GPS (Blue), GSM (Green), Power (Red)

Physical Specification

  • Dimensions: 74 (L) × 31 (W) × 13 (H) mm

Sensitivity

  • Tracking Sensitivity: −162 dBm
  • Acquisition Sensitivity: −148 dBm

Power

  • Input Voltage: 9–90 V DC
  • Battery: 55 mAh / 3.7 V Li-Polymer battery

GNSS

  • GNSS Frequency: BDS B1: 1561.098 MHz; GPS L1: 1575.42 MHz
  • Positioning Accuracy: < 2.5 m (CEP50)
  • TTFF (Open sky): Avg. hot start ≤ 3 seconds; Avg. cold start ≤ 32 seconds

Cellular

  • Technology: 4G + 2G
  • 4G bands (FDD): B1 / B3 / B5 / B7 / B8 / B20 / B28
  • 4G bands (TDD): B34 / B38 / B39 / B40 / B41
  • 2G bands: GSM 850 / 900 / 1800 / 1900 MHz

Interface

Indication: GPS (Blue), GSM (Green), Power (Red)

Operating Environment

Operating Temperature: −20 °C to +70 °C
