Dashcams

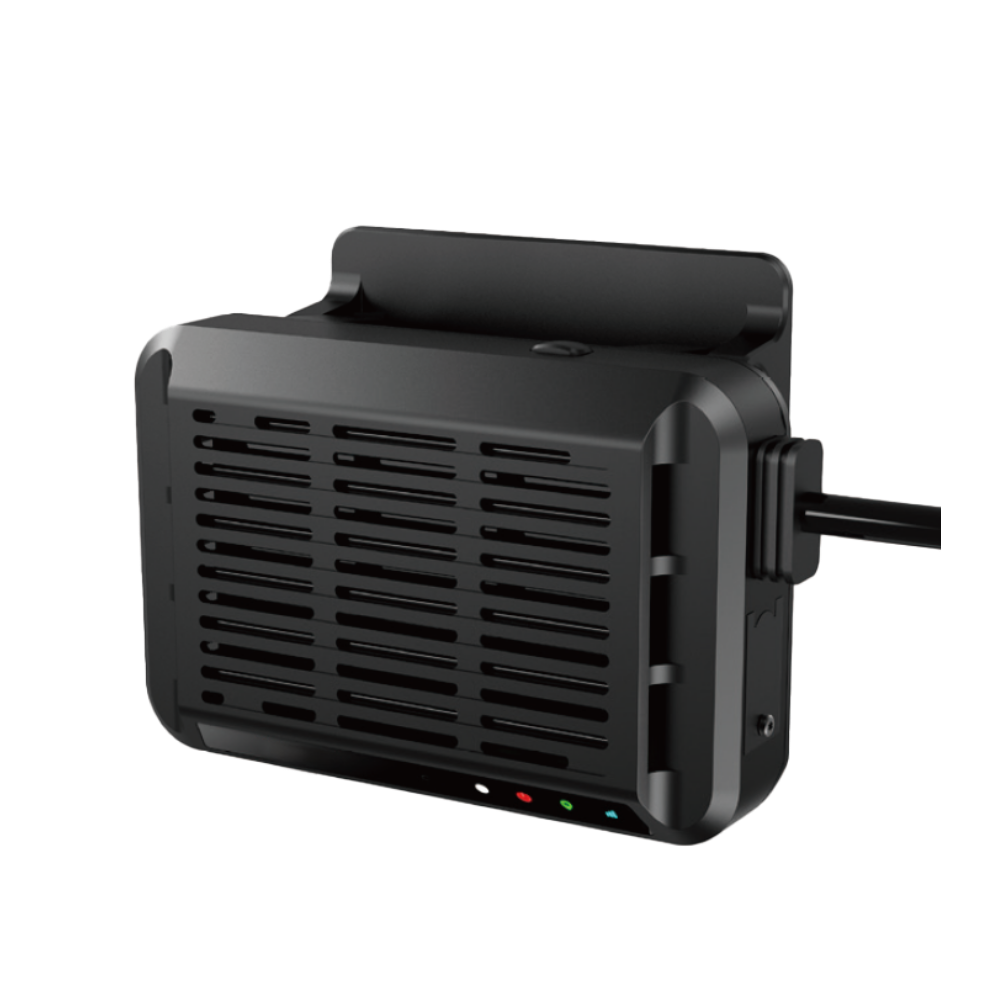

DC03-AI

DC03-AI provides AI-powered multi-channel video monitoring with real-time alerts and cloud-connected fleet visibility.

Key Features

Works over 4G, 3G, and 2G
AI-powered safety monitoring
Multi-channel video recording
Live video monitoring
Real-time GPS tracking
SD card backup storage
Customizable safety alerts
Supports up to 2 additional cameras

Cellular

Technology: 4G LTE Cat 4, 3G (WCDMA), 2G (GSM)

Frequency:

  • DC03-AI-EU
  • FDD-LTE: B1/B3/B5/B7/B8/B20/B28A
  • TDD-LTE: B38/B40/B41
  • WCDMA: B1/B5/B8
  • GSM: B3/B8

GNSS

Positioning system: GPS, BDS, AGPS

Camera

Camera support: 1080P × 3

Video format: .ts

Power

Input voltage: DC 9-30V

Operating Environment

Operating temperature: -20°C to +70°C

Storage temperature: -30°C to +85°C

Physical Specification

Dimensions: 114 x 113 x 33 mm

Weight: 294g

Interface

LED indication: Red (Power), Blue (Cellular), Green (GNSS), White (AI)

SIM: Nano-SIM

Internal memory: EMMC 128GB

External memory: TF card (up to 256GB*1)

USB: Type-C

WiFi: 2.4GHz, Support AP Mode/STD Mode/WiFi Direct

Bluetooth: N/A

Microphone: Support

Speaker: Support

Digital I/Os: 2SOS, 2Relay, 2*Reserved inputs

Analog I/Os: N/A

Serial ports: 2*TTL

Sensor

Sensor: 6-Axis accelerometer

AI & Safety Features

ADAS support:

  • Forward collision warning (FCW)
  • Headway monitoring warning (HMW)
  • Lane departure warning (LDW)

Optional DMS support:

  • Phone use detection
  • Smoking detection
  • Driver distraction detection
  • Yawning detection
  • Eyes closed detection
  • No face detected alert

Compatibility

Compatible with DI02, DI03, DI04-USB, DE01
